Junhua Liu is currently a Ph.D. student, and his research interests focus on emergent phenomena of transition metal oxides interface
Zhaoliang Liao is a Professor at the University of Science and Technology of China. He received his Ph.D. degree from the Institute of Physics, CAS and Louisiana State University. He is supported by the Hundred-Talent Program Funding CAS and Youth Funding of Chinese National Innovative Talents Program. He focuses on the preparation and characterization of epitaxial quantum functional thin film materials and is committed to the design and function tailoring of oxides heterostructure utilizing advanced epitaxial growth technology. He has published several papers in high-level international journals, including Nat. Mater., Nat. Commun., PNAS, Nano Lett., PRL, Adv. Funct. Mater., Adv. Mater., and Sci.Adv.
Complex perovskite oxides exhibit extremely rich physical properties in terms of magnetism, electrical transport, and electrical polarization characteristics due to the competition and coupling of many degrees of freedom. The B-site ions and O ions in perovskite form six-coordinated octahedral units, which are connected at a common vertex toward the basic framework of the perovskite oxide, providing a crucial platform to tailor physical properties. The rotation or distortion of the oxygen octahedra will tip the competing balance, leading to many emergent ground states. To further clarify the subtle relationship between emergent properties and oxide octahedral behavior, this article reviews the structure of perovskite oxides, the characterization methods of oxygen octahedral rotation and the response of transport, electrical polarization and magnetism of several typical perovskite heterostructures to oxygen octahedral rotation modes. With knowledge of how to manipulate the octahedral rotation behavior and regulate the physical properties of perovskite oxides, rationally designing the sample manufacturing process can effectively guide the development and application of novel electronic functional materials and devices.
Graphical Abstract
Interaction between oxygen octahedral rotation (lattice) and many degrees of freedom including spin, orbit, and charge.
Abstract
Complex perovskite oxides exhibit extremely rich physical properties in terms of magnetism, electrical transport, and electrical polarization characteristics due to the competition and coupling of many degrees of freedom. The B-site ions and O ions in perovskite form six-coordinated octahedral units, which are connected at a common vertex toward the basic framework of the perovskite oxide, providing a crucial platform to tailor physical properties. The rotation or distortion of the oxygen octahedra will tip the competing balance, leading to many emergent ground states. To further clarify the subtle relationship between emergent properties and oxide octahedral behavior, this article reviews the structure of perovskite oxides, the characterization methods of oxygen octahedral rotation and the response of transport, electrical polarization and magnetism of several typical perovskite heterostructures to oxygen octahedral rotation modes. With knowledge of how to manipulate the octahedral rotation behavior and regulate the physical properties of perovskite oxides, rationally designing the sample manufacturing process can effectively guide the development and application of novel electronic functional materials and devices.
Public Summary
We review and summarize the structure of perovskite oxides, the characterization methods of oxygen octahedral rotation, as well as the response for transport, electrical polarization, and magnetism.
Half-order X-ray diffraction and STEM (HAADF and ABF) are two most common techniques to characterize the octahendral rotation.
Several key issues that need to be solved urgently are proposed to facilitate breakthroughs in octahedral-rotation-based devices.
China has firmly set the goal of peak carbon emissions before 2030 and full carbon neutrality before 2060[1-3]. Against this background, the new energy vehicle (NEV) industry presents a new space for rapid growth. To promote the development of the NEV industry, China has successively issued a series of subsidies since 2009[4, 5]. In 2013, as the development of the NEV industry entered a new stage, China began to implement its program of retrogressive subsidies (PRS)1. The purpose of this policy is to reduce the impact of government intervention in the NEV industry by reducing the amount of subsidies year by year and to give full play to the decisive role of the market in resource allocation. Prior studies have shown that subsidies have promoted the development of China’s NEV industry[6, 7].
The COVID-19 pandemic, a major public emergency, has a significantly negative impact on human society. To cope with the negative influence of the COVID-19 pandemic on China’s NEV enterprises, the Chinese government issued the latest PRS on April 23, 2020, stating that China has decided to extend it until 2022, after which it may be completely cancelled2. Although previous scholars have conducted in-depth studies on the reaction of NEV enterprises’ stakeholders to the subsidy policy and the resulting change in enterprises’ performance, most of them tend to focus only on the reaction of corporate consumers to the subsidy policy and the resulting change in enterprises’ financial or innovation performance[8, 9]. As a result, they have ignored the reaction of corporate investors to the subsidy policy and the resulting change in the corporate market value. On the other hand, prior scholars have always tended to investigate the reaction of stakeholders to subsidy policies in the context of corporate daily operations[10-12]. However, few scholars have paid attention to it in the context of major public emergencies, such as COVID-19 pandemic. Based on this, this research aims to explore the reaction mechanism of NEV enterprise investors to the PRS in the context of COVID-19 pandemic.
Overall, based on the event study method, this study empirically tested the reaction mechanism of investors of NEV enterprises to China’s PRS in the context of COVID-19 pandemic and discussed the differences in investors’ reactions under different enterprise attributes (i.e., whether listed on the Shanghai Stock Exchange, whether located in a first-tier city, whether belonging to state-owned enterprises, and whether belonging to the upstream NEV industry).
The rest of the paper is organized as follows. Section 2 introduces the theoretical background and develops our hypotheses. Section 3 introduces the research design, and Section 4 analyzes the empirical results. The last section is the conclusions.
2.
Theoretical background and hypothesis development
2.1
The reaction of NEV enterprise investors to the PRS in the context of COVID-19 pandemic
Prospect theory was first proposed in 1979, which points out that people are different in their sensitivity to loss and gain, and the pain in the face of loss is much greater than the pleasure in the face of gain[13-16]. Therefore, when choosing between a certain profit and a risky gamble, people often choose a certain profit to avoid the risk of loss[17-19]. From an investor’s point of view, investors are generally reluctant to take risks[20]. For different investment projects with the same rate of return, investors will always choose the investment projects with the lowest risk[21, 22]. Based on this, investors’ perception of the future risks and benefits of the NEV industry will affect their behavioral feedback to NEV enterprises, which in turn affects the market value of NEV enterprises.
The NEV subsidy policy is crucial to the survival and development of the NEV industry in China[23, 24]. During the past ten years, the subsidy policy for NEVs has greatly stimulated consumers’ enthusiasm for purchasing NEVs and investors’ desire to invest in the enterprises that produce them, which has effectively promoted the development of the NEV industry in China[25, 26]. However, the sudden outbreak of COVID-19 in 2019 disrupted the orderly development of China’s NEV industry. To cope with its negative influence on China’s NEV enterprises, the Chinese government issued the latest PRS on April 23, 2020. However, due to information asymmetry, stakeholders may misunderstand this subsidy policy; that is, they may hold that the government will not have other subsidy policies after the implementation of the PRS. Therefore, investors may be concerned about the future development of NEV enterprises. In this case, based on the perspective of prospect theory, investors may be more inclined to place their funds in lower-risk industries. Based on the above logic, we assume the following hypothesis:
Hypothesis 1. The reaction of NEV enterprise investors to the PRS in the context of COVID-19 pandemic is likely to be negative.
2.2
The heterogeneous reaction of NEV enterprise investors: Shanghai vs. Shenzhen Stock Exchanges
Generally, the Shanghai Stock Exchange is dominated by large enterprises with stable performance, while the Shenzhen Stock Exchange is dominated by small- and medium-sized enterprises that are in their developmental stages[27, 28]. Therefore, on the whole, compared with enterprises listed on the Shenzhen Stock Exchange, enterprises listed on the Shanghai Stock Exchange are generally more equipped to manage uncertainties and risks. In this case, investors of NEV enterprises listed on the Shanghai Stock Exchange (vs. the Shenzhen Stock Exchange) should have a lower risk perception when facing the PRS in the context of COVID-19 pandemic. Based on the above logic, we assume the following hypothesis:
Hypothesis 2. The negative reaction of investors is weaker when NEV enterprises are listed on the Shanghai Stock Exchange (vs. the Shenzhen Stock Exchange).
2.3
The heterogeneous reaction of NEV enterprise investors: state-owned vs. nonstate-owned enterprises
State-owned enterprises, which act in an agency capacity on behalf of the government in the market economy[29, 30], are granted sufficient resources[31, 32], such as policy and industry information[33], subsidies[34] and tax breaks[35], by the state. These political resources can help such enterprises effectively cope with risks and unforeseen challenges[36–38]. Therefore, even after the issuance of the PRS in response to COVID-19 pandemic, state-owned enterprises still enjoy more resources than nonstate-owned enterprises in the postsubsidy era. As such, investors in nonstate-owned NEV enterprises should have a higher risk perception given the anticipated effects of the PRS. Based on the above logic, we assume the following hypothesis:
Hypothesis 3. The negative reaction of investors is stronger when NEV enterprises belong to nonstate-owned enterprises (vs. state-owned enterprises).
2.4
The heterogeneous reaction of NEV enterprise investors: first-tier cities vs. nonfirst-tier cities
Generally, first-tier cities have a higher level of economic development than nonfirst-tier cities. Therefore, the local governments in first-tier cities usually have a stronger ability to support local enterprises in the postsubsidy era. In addition, enterprises that can survive in first-tier cities usually have more resistance to uncertainties and risks than those in nonfirst-tier cities. In this case, investors in NEV enterprises in first-tier cities (vs. nonfirst-tier cities) should have a lower risk perception in response to the PRS in the context of COVID-19 pandemic. Based on the above logic, we assume the following hypothesis:
Hypothesis 4. The negative reaction of investors is weaker when NEV enterprises are located in first-tier cities (vs. nonfirst-tier cities).
2.5
The heterogeneous reaction of NEV enterprise investors in the supply chain
At present, the number of upstream enterprises is much higher than that of midstream and downstream enterprises in China’s NEV industry, which means that upstream enterprises will face greater competitive pressure when dealing with the uncertainties associated with future industry development. In other words, investors in upstream enterprises (vs. midstream and downstream enterprises) are more risk-aware when facing uncertainties. In this case, investors in upstream enterprises (vs. midstream and downstream enterprises) should have a higher risk perception in response to the PRS in the context of COVID-19 pandemic. Based on the above logic, we assume the following hypothesis:
Hypothesis 5. The negative reaction of investors is stronger for upstream (vs. midstream and downstream) NEV enterprises.
3.
Research design
3.1
Sample selection and data source
A total of 171 automobile enterprises listed on the Shenzhen and Shanghai Stock Exchanges were selected as samples in this study. Specifically, the sample source is Choice3, which is among the top financial databases in China. Based on the industry classification of listed enterprises by Choice, we obtained a sample of 209 listed enterprises whose main line of business is in the automobile industry. Considering that this study focuses on the PRS issued on April 23, 2020, we excluded 31 samples with market dates after April 23, 2020. Additionally, to prevent confounding events that fall within seven days of the issuance of the PRS and to avoid using an insufficient return prediction period, we also removed 7 unqualified samples[39, 40]. After accounting for these considerations, we obtained a sample of 171 listed auto enterprises, of which 109 are considered NEV enterprises and 62 are considered nonnew energy vehicle (NNEV) enterprises based on the classification set forth by Choice.
Cumulative abnormal return (CAR) is the explanatory variable we use to probe the effect of the PRS on corporate market value. Following prior studies, CAR related to the critical event is calculated within a 3-day time window (i.e., −1,0,and+1 days) [41]. Concretely:
Abnormal return (AR) refers to the unexpected percentage difference between the expected normal and actual returns. The market model is used to calculate the normal return, AR and CAR[40], namely:
Rit=Ii+SiRmt+ETit,
where Rit is the normal return of security i on day t, Ii is the intercept, Si is the systematic risk related to security i, Rmt is the return on the market portfolio of stocks on day t, and ETit is the error term of security i on day t.
Next, AR is calculated as:
ARit=Rit−(Xi+ZiRmt),
where ARit is the AR of security i on day t and Xi and Zi belong to the ordinary least squares (OLS) parameter estimates of security i. CAR for the 3-day time window for each security i is thus calculated as
CAR(−1,0,+1)=n=(−1,0,+1)∑t=nARit.
The expected normal returns are estimated using a trailing period of 128 to 8 trading days before the critical event[40]. We regard the PRS issued on April 23, 2020, as the critical event. Since the policy promulgation time (17:08) is the closing time of the stock market on that day (13:00–15:00), we choose April 24, 2020, as the event date. The daily market return volatility is calculated using the equal weight average of the Shanghai Stock Exchange Composite Index and the Shenzhen Stock Exchange Component Index[40-42]. All data were collected from the CSMAR4.
3.2.2
Explanatory variable
Whether it is an NEV enterprise: If the firm is classified as a new energy concept by Choice, it is considered to be an NEV enterprise and given the value of “1”; otherwise, it is given the value of “0”.
Listed on the Shanghai Stock Exchange: If the firm is listed on the Shanghai Stock Exchange, it is given the value of “1”; otherwise, it is given the value of “0”.
Whether it is a state-owned enterprise: If the firm is ultimately controlled by the State-Owned Assets Committee of China, it is given the value of “1”; otherwise, it is given the value of “0”.
Is it located in the first-tier city: If the firm was headquartered in a first-tier city (i.e., Beijing, Shanghai, Guangzhou and Shenzhen) in 2020, it is given the value of “1”; otherwise, it is given the value of “0”.
Supply chain position: If the firm is mainly engaged in supplying raw materials and accessories/automobile manufacturing/vehicle sales, it is considered to be in the upstream/midstream/downstream of the supply chain and given the value of “1”; otherwise, it is given the value of “0”.
3.2.3
Descriptive statistics
Tables 1 and 2 show the statistical data of the variables.
3.2.4
Kolmogorov–Smirnov (KS) test and Wilcoxon signed-rank test
To explore the effect of the PRS on the market value of NEV enterprises, we decided to follow Lo et al.[43] by applying the methods of an independent sample t-test or a Wilcoxon signed-rank test. Through the KS test, we found that all explained variables did not conform to the normal distribution (see Table 3); thus, the Wilcoxon signed-rank test was adopted (compared to the default median “0”).
It can be seen from Table 4 that the negative reaction of NEV enterprise investors is significant (Day−1to1,z=−3.048, p=0.002), while the negative reaction of NNEV enterprise investors is not significant (Day −1 to 1, z=0.007, p=0.994). Hypothesis 1 is thus proven. Additionally, Day −1 is not significant, thus indicating that no information is leaked before the event.
Table
4.
Wilcoxon signed-rank test between NEV and NNEV enterprises.
We further analyze charts of the stock market to identify the reaction of investors (see Fig. 1). Fig. 1 shows that the AAR is significantly negative from the first day (Day 0) and reaches the negative pole on the third day (Day 2). This reveals a coupling relationship between the dissemination period of policy information and the negative reaction of investors.
Figure
1.
NEV enterprise investors’ reaction to the PRS.
Table 5 reveals the difference in the reaction of investors of NEV enterprises listed on the Shanghai and Shenzhen Stock Exchanges. Table 5 shows that the market value of NEV enterprises listed on the Shenzhen Stock Exchange suffers a greater negative impact (Day −1 to 1, z=−4.022, p=0.000). Hypothesis 2 is therefore tested. The results show that investors have more confidence in NEV enterprises on the Shanghai Stock Exchange (vs. the Shenzhen Stock Exchange) in the postsubsidy era.
Table
5.
Wilcoxon signed-rank test between the Shanghai and Shenzhen Stock Exchanges.
Table 6 shows the difference in the reaction of investors of state-owned and nonstate-owned firms. From Table 6, it can be seen that the market value of nonstate-owned enterprises suffers a greater negative impact (Day −1 to 1, z=−3.115, p=0.002). Hypothesis 3 is thus proven. Our results echo those of Wang et al.[8] and support our view that state-owned NEV enterprises have more political resources to ensure their survival and development, and their investors will thus have higher confidence in their development prospects in the postsubsidy era.
Table
6.
Wilcoxon signed-rank test between state-owned and nonstate-owned firms.
Table 7 shows the difference in the reaction of investors of NEV enterprises in different geographical locations. Table 7 shows that the market value of NEV enterprises located in first-tier cities suffers a less negative impact (Day −1 to 1, z=−1.704, p=0.088). Hypothesis 4 is thus proven. Our results confirm our view that investors will have more confidence in NEV enterprises located in first-tier cities (vs. nonfirst-tier cities) in the postsubsidy era.
Table
7.
Wilcoxon signed-rank test between first-tier cities and nonfirst-tier cities.
Table 8 shows the difference in the reaction of investors of NEV enterprises with different supply chain locations. It can be seen from Table 8 that the market value of NEV enterprises located in the upstream market segment suffers a greater negative impact (Day −1 to 1, z=−2.792, p=0.005). Hypothesis 5 is thus proven. Our results confirm our view that investors may have less confidence in upstream (vs. midstream and downstream) NEV enterprises in the postsubsidy era.
Table
8.
Wilcoxon signed-rank test in the supply chain.
First, the results of Day 0, Day 1, and Day 0 to 1 in Tables 4 to 8 are consistent with Day −1 to 1, thus indicating the robustness of our results. Second, to verify the validity of the Wilcoxon signed-rank test, the binomial sign test was selected as an alternative method (see Tables S1−S5 in Supporting Information). Our key results remain unchanged. Finally, we regard the new first-tier cities determined in 2020 as first-tier cities and empirically retest the first-tier cities variable. The results remain robust (see Tables S6 and S7 in Supporting Information).
5.
Conclusions
COVID-19 pandemic has a serious negative impact on China’s economy, especially in the NEV industry, which is in its early developmental stages. To address the negative impact of COVID-19 pandemic on China’s NEV industry, the Chinese government issued the latest PRS on April 23, 2020. To explore the reaction mechanism of NEV enterprise investors to the PRS in the context of COVID-19 pandemic, 171 Chinese listed auto enterprises were selected as samples. Based on the event study method, this study discussed the differences in investors’ reactions under different enterprise attributes (i.e., whether listed on the Shanghai Stock Exchange, whether located in a first-tier city, whether belonging to state-owned enterprises, and whether belonging to the upstream NEV enterprises. Overall, we obtained five results. First, due to information asymmetry, the reaction of NEV enterprise investors to the PRS in the context of COVID-19 pandemic is negative. Second, the negative reaction of investors is weaker when NEV enterprises are listed on the Shanghai Stock Exchange (vs. the Shenzhen Stock Exchange). Third, the negative reaction of investors is stronger when NEV enterprises belong to nonstate-owned enterprises (vs. state-owned enterprises). Fourth, the negative reaction of investors is weaker when NEV enterprises are located in first-tier cities (vs. nonfirst-tier cities). Finally, the negative reaction of investors is stronger for upstream (vs. midstream and downstream) NEV enterprises. Overall, the results of this study provide empirical evidence for the effectiveness of risk aversion in prospect theory in practice and enrich the application scenario of prospect theory.
This study’s contribution to the literature is threefold. First, our study provides empirical evidence for analyzing the reaction of NEV enterprise investors to the government subsidy policy, which enriches the literature focusing on the reaction of stakeholders to the government subsidy policy. Second, this study analyzes the reaction of NEV enterprise investors to the PRS in the context of COVID-19 pandemic from multiple perspectives, thus providing practical insight for NEV enterprises to make decisions on stakeholder management strategies in the context of major public emergencies. Finally, by comparing and analyzing the degree of change in the market value of NEV enterprises with different attributes when the PRS is issued, our study provides practical recommendations on how to formulate government policy response strategies according to the unique needs of each situation.
Our study also makes several practical recommendations for NEV enterprises and their investors. First, when the state announces subsidy policies similar to PRS, enterprises should communicate information with external investors in a timely manner to prevent losses caused by stakeholders’ misunderstanding, especially in the context of major public emergencies, such as COVID-19 pandemic. Second, NEV enterprises should convey reliable signals to investors in the daily operation process to prevent them from suffering market value loss in the context of information asymmetry, especially for nonstate-owned enterprises, enterprises in the Shenzhen Stock Exchange and nonfirst-tier cities, as well as upstream enterprises with greater pressure of competition. Finally, investors of NEV enterprises should believe in the scientific nature and effectiveness of national policies to avoid causing their own losses due to misunderstanding.
Our research also presents several limitations. On the one hand, this study only focuses on NEV enterprises in the automobile industry. There are other firms in other industries related to NEV, which can be included in the sample for further exploration in future research. On the other hand, this study only focuses on the key subsidy policy made by the government in response to COVID-19 pandemic. As the situation of the epidemic changes, the government may introduce other follow-up policies. Therefore, future research can continue to explore the reaction mechanism of NEV enterprise investors to other policies on the basis of this study.
Conflict of Interest
The authors declare that they have no conflict of interest.
We review and summarize the structure of perovskite oxides, the characterization methods of oxygen octahedral rotation, as well as the response for transport, electrical polarization, and magnetism.
Half-order X-ray diffraction and STEM (HAADF and ABF) are two most common techniques to characterize the octahendral rotation.
Several key issues that need to be solved urgently are proposed to facilitate breakthroughs in octahedral-rotation-based devices.
Hassenzahl W V, Hazelton D W, Johnson B K, et al. Electric power applications of superconductivity. Proceedings of the IEEE,2004, 92 (10): 1655–1674. DOI: 10.1109/JPROC.2004.833674
[2]
Daughton J, Chen Y. GMR materials for low field applications. IEEE Transactions on Magnetics,1993, 29 (6): 2705–2710. DOI: 10.1109/20.280936
[3]
Wang W, Tadé M O, Shao Z. Research progress of perovskite materials in photocatalysis- and photovoltaics-related energy conversion and environmental treatment. Chemical Society Reviews,2015, 44 (15): 5371–5408. DOI: 10.1039/C5CS00113G
[4]
Imada M, Fujimori A, Tokura Y. Metal-insulator transitions. Reviews of Modern Physics,1998, 70 (4): 1039. DOI: 10.1103/RevModPhys.70.1039
[5]
Schober A, Fowlie J, Guennou M, et al. Vibrational properties of LaNiO3 films in the ultrathin regime. APL Materials,2020, 8 (6): 061102. DOI: 10.1063/5.0010233
[6]
Raj A, Kumar M, Mishra D, et al. Raman and photoluminescence spectral studies in epitaxial Bi2NiMnO6 double perovskite thin-film samples. Optical Materials,2020, 101: 109773. DOI: 10.1016/j.optmat.2020.109773
[7]
Glazer A. Simple ways of determining perovskite structures. Acta Crystallographica, Section A: Crystal Physics, Diffraction, Theoretical and General Crystallography,1975, 31 (6): 756–762. DOI: 10.1107/S0567739475001635
[8]
Ohtomo A, Hwang H. A high-mobility electron gas at the LaAlO3/SrTiO3 heterointerface. Nature,2004, 427 (6973): 423–426. DOI: 10.1038/nature02308
[9]
Reyren N, Thiel S, Caviglia A, et al. Superconducting interfaces between insulating oxides. Science,2007, 317 (5842): 1196–1199. DOI: 10.1126/science.1146006
[10]
Brinkman A, Huijben M, Van Zalk M, et al. Magnetic effects at the interface between non-magnetic oxides. Nature Materials,2007, 6 (7): 493–496. DOI: 10.1038/nmat1931
[11]
Takahashi K, Kawasaki M, Tokura Y. Interface ferromagnetism in oxide superlattices of CaMnO3/CaRuO3. Applied Physics Letters,2001, 79 (9): 1324–1326. DOI: 10.1063/1.1398331
[12]
He J, Borisevich A, Kalinin S V, et al. Control of octahedral tilts and magnetic properties of perovskite oxide heterostructures by substrate symmetry. Physical Review Letters,2010, 105 (22): 227203. DOI: 10.1103/PhysRevLett.105.227203
[13]
Lee S S, Kim Y M, Lee H J, et al. Correlation between geometrically induced oxygen octahedral tilts and multiferroic behaviors in BiFeO3 films. Advanced Functional Materials,2018, 28 (19): 1800839. DOI: 10.1002/adfm.201800839
[14]
Thomas S, Kuiper B, Hu J, et al. Localized control of Curie temperature in perovskite oxide film by capping-layer-induced octahedral distortion. Physical Review Letters,2017, 119 (17): 177203. DOI: 10.1103/PhysRevLett.119.177203
[15]
Lu W, Yang P, Song W D, et al. Control of oxygen octahedral rotations and physical properties in SrRuO3 films. Physical Review B,2013, 88 (21): 214115. DOI: 10.1103/PhysRevB.88.214115
[16]
Kan D, Aso R, Sato R, et al. Tuning magnetic anisotropy by interfacially engineering the oxygen coordination environment in a transition metal oxide. Nature Materials,2016, 15 (4): 432–437. DOI: 10.1038/nmat4580
[17]
Gao R, Dong Y Q, Xu H, et al. Interfacial octahedral rotation mismatch control of the symmetry and properties of SrRuO3. ACS Applied Materials & Interfaces,2016, 8 (23): 14871–14878. DOI: doi:10.1021/acsami.6b02864
[18]
Jaramillo R, Ha S D, Silevitch D M, et al. Origins of bad-metal conductivity and the insulator-metal transition in the rare-earth nickelates. Nature Physics,2014, 10 (4): 304–307. DOI: 10.1038/nphys2907
[19]
Rondinelli J M, Fennie C J. Octahedral rotation-induced ferroelectricity in cation ordered perovskites. Advanced Materials,2012, 24 (15): 1961–1968. DOI: 10.1002/adma.201104674
[20]
Benedek N A, Mulder A T, Fennie C J. Polar octahedral rotations: A path to new multifunctional materials. Journal of Solid State Chemistry,2012, 195: 11–20. DOI: 10.1016/j.jssc.2012.04.012
[21]
Cui Y, Liu X, Fan W, et al. Metal–insulator transition in RNiO3 (R = Pr, Nd, Sm, Gd, Tb, Dy, Ho, Er) induced by Li doping: A first-principles study. Journal of Applied Physics,2021, 129 (23): 235107. DOI: 10.1063/5.0050263
[22]
Mercy A, Bieder J, Íñiguez J, et al. Structurally triggered metal-insulator transition in rare-earth nickelates. Nature Communications,2017, 8 (1): 1677. DOI: 10.1038/s41467-017-01811-x
[23]
Subedi A, Peil O E, Georges A. Low-energy description of the metal-insulator transition in the rare-earth nickelates. Physical Review B,2015, 91 (7): 075128. DOI: 10.1103/PhysRevB.91.075128
[24]
Goldschmidt V M. Die gesetze der krystallochemie. Naturwissenschaften,1926, 14 (21): 477–485. DOI: 10.1007/BF01507527
[25]
Filip M R, Giustino F. The geometric blueprint of perovskites. Proceedings of the National Academy of Sciences of the United States of America,2018, 115 (21): 5397–5402. DOI: 10.1073/pnas.1719179115
[26]
Bartel C J, Sutton C, Goldsmith B R, et al. New tolerance factor to predict the stability of perovskite oxides and halides. Science Advances,2019, 5 (2): eaav0693. DOI: 10.1126/sciadv.aav0693
[27]
Woodward D I, Reaney I M. Electron diffraction of tilted perovskites. Acta Crystallographica Section B:Structural Science,2005, 61: 387–399. DOI: 10.1107/S0108768105015521
[28]
Jia C L, Mi S B, Faley M, et al. Oxygen octahedron reconstruction in the SrTiO3/LaAlO3 heterointerfaces investigated using aberration-corrected ultrahigh-resolution transmission electron microscopy. Physical Review B,2009, 79 (8): 081405. DOI: 10.1103/PhysRevB.79.081405
[29]
May S J, Kim J W, Rondinelli J M, et al. Quantifying octahedral rotations in strained perovskite oxide films. Physical Review B,2010, 82 (1): 014110. DOI: 10.1103/PhysRevB.82.014110
[30]
Glazer A. The classification of tilted octahedra in perovskites. Acta Crystallographica, Section B: Structural Crystallography and Crystal Chemistry,1972, 28 (11): 3384–3392. DOI: 10.1107/S0567740872007976
[31]
Liao Z, Green R J, Gauquelin N, et al. Long–range domain structure and symmetry engineering by interfacial oxygen octahedral coupling at heterostructure interface. Advanced Functional Materials,2016, 26 (36): 6627–6634. DOI: 10.1002/adfm.201602155
[32]
Aso R, Kan D, Shimakawa Y, et al. Atomic level observation of octahedral distortions at the perovskite oxide heterointerface. Scientific Reports,2013, 3: 2214. DOI: 10.1038/srep02214
[33]
Liao Z, Huijben M, Zhong Z, et al. Controlled lateral anisotropy in correlated manganite heterostructures by interface-engineered oxygen octahedral coupling. Nature Materials,2016, 15 (4): 425–431. DOI: 10.1038/nmat4579
[34]
Samanta K, Ležaić M, Blügel S, et al. Tailoring the anomalous Hall effect of SrRuO3 thin films by strain: A first principles study. Journal of Applied Physics,2021, 129 (9): 093904. DOI: 10.1063/5.0043742
[35]
Wang L, Pan W, Han D, et al. First-principles calculations of oxygen octahedral distortions in LaAlO3/SrTiO3 (001) superlattices. Physical Chemistry Chemical Physics,2020, 22 (10): 5826–5831. DOI: 10.1039/C9CP06236J
[36]
Gu T, Scarbrough T, Yang Y, et al. Cooperative couplings between octahedral rotations and ferroelectricity in perovskites and related materials. Physical Review Letters,2018, 120 (19): 197602. DOI: 10.1103/PhysRevLett.120.197602
[37]
Rondinelli J M, Spaldin N A. Structure and properties of functional oxide thin films: Insights from electronic–structure calculations. Advanced Materials,2011, 23 (30): 3363–3381. DOI: 10.1002/adma.201101152
[38]
Koohfar S, Disa A S, Marshall M S J, et al. Structural distortions at polar manganite interfaces. Physical Review B,2017, 96 (2): 024108. DOI: 10.1103/PhysRevB.96.024108
[39]
Zhang S, Guo X, Tang Y, et al. Polarization rotation in ultrathin ferroelectrics tailored by interfacial oxygen octahedral coupling. ACS Nano,2018, 12 (4): 3681–3688. DOI: 10.1021/acsnano.8b00862
[40]
Chen B, Gauquelin N, Green R J, et al. Spatially controlled octahedral rotations and metal-insulator transitions in nickelate superlattices. Nano Letters,2021, 21 (3): 1295–1302. DOI: 10.1021/acs.nanolett.0c03850
[41]
Kan D, Anada M, Wakabayashi Y, et al. Oxygen octahedral distortions in compressively strained SrRuO3 epitaxial thin films. Journal of Applied Physics,2018, 123 (23): 235303. DOI: 10.1063/1.5036748
[42]
Chen P F, Lan D, Liu C, et al. Correlated cation lattice symmetry and oxygen octahedral rotation in perovskite oxide heterostructures. Journal of Applied Physics,2021, 129 (2): 025303. DOI: 10.1063/5.0035501
[43]
Muller D A. Structure and bonding at the atomic scale by scanning transmission electron microscopy. Nature Materials,2009, 8 (4): 263–270. DOI: 10.1038/nmat2380
[44]
Ovsyannikov S V, Abakumov A M, Tsirlin A A, et al. Perovskite-like Mn2O3: A path to new manganites. Angewandte Chemie International Edition,2013, 52 (5): 1494–1498. DOI: 10.1002/anie.201208553
[45]
Bindu R, Pandey S K, Kumar A, et al. Local distortion of MnO6 octahedron in La1− xSrxMnO3+ δ (x = 0.1–0.9): An EXAFS study. Journal of Physics: Condensed Matter,2005, 17 (41): 6393–6404. DOI: 10.1088/0953-8984/17/41/010
[46]
Bashir J, Shaheen R, Khan M N. Structural characterization of SrLaMnRuO6 by synchrotron X-ray powder diffraction and X-ray absorption spectroscopy. Solid State Sciences,2008, 10 (5): 638–644. DOI: 10.1016/j.solidstatesciences.2007.10.011
[47]
Shaheen R, Bashir J, Khan M N. EXAFS studies of ruthenium based double perovskite ALaMnRuO6 (A = Ca, Sr, Ba). Materials Sciences and Applications,2012, 03 (01): 24–29. DOI: 10.4236/msa.2012.31004
[48]
Mahana S, Manju U, Nandi P, et al. Role of local structural distortion in driving ferroelectricity in GdCrO3. Physical Review B,2018, 97 (22): 224107. DOI: 10.1103/PhysRevB.97.224107
[49]
Jiang Y, Yuan L, Wang X, et al. Jahn-Teller disproportionation induced exfoliation of unit-cell scale ε-MnO2. Angewandte Chemie International Edition,2020, 59 (50): 22659–22666. DOI: 10.1002/anie.202010246
[50]
Yuan Y K, Lu Y F, Stone G, et al. Three-dimensional atomic scale electron density reconstruction of octahedral tilt epitaxy in functional perovskites. Nature Communications,2018, 9: 5220. DOI: 10.1038/s41467-018-07665-1
[51]
Herger R, Willmott P R, Schleputz C M, et al. Structure determination of monolayer-by-monolayer grown La1- xSrxMnO3 thin films and the onset of magnetoresistance. Physical Review B,2008, 77 (8): 085401. DOI: 10.1103/PhysRevB.77.085401
[52]
Bielecki J, Svedlindh P, Tibebu D T, et al. Structural and magnetic properties of isovalently substituted multiferroic BiFeO3: Insights from Raman spectroscopy. Physical Review B,2012, 86 (18): 184422. DOI: 10.1103/PhysRevB.86.184422
[53]
Xu Q, Zheng X, Wen Z, et al. Enhanced room temperature ferromagnetism in porous BiFeO3 prepared using cotton templates. Solid State Communications,2011, 151 (8): 624–627. DOI: 10.1016/j.ssc.2011.01.029
[54]
Iliev M, Abrashev M, Lee H-G, et al. Raman spectroscopy of orthorhombic perovskitelike YMnO3 and LaMnO3. Physical Review B,1998, 57 (5): 2872. DOI: 10.1103/PhysRevB.57.2872
[55]
Woodward P M, Cox D E, Moshopoulou E, et al. Structural studies of charge disproportionation and magnetic order in CaFeO3. Physical Review B,2000, 62 (2): 844–855. DOI: 10.1103/PhysRevB.62.844
[56]
Medarde M, Fernandez-Diaz M T, Lacorre P. Long-range charge order in the low-temperature insulating phase of PrNiO3. Physical Review B,2008, 78 (21): 212101. DOI: 10.1103/PhysRevB.78.212101
[57]
Blasco J, Rodriguez-Velamazan J A, Garcia J, et al. Structural properties of charge disproportionation and magnetic order in Sr2/3Ln1/3FeO3 (Ln=La, Pr, and Nd). Physical Review B,2018, 98 (10): 104422. DOI: 10.1103/PhysRevB.98.104422
[58]
Cheng J, Kweon K E, Larregola S A, et al. Charge disproportionation and the pressure-induced insulator-metal transition in cubic perovskite PbCrO3. Proceedings of the National Academy of Sciences of the United States of America,2015, 112 (6): 1670–1674. DOI: 10.1073/pnas.1424431112
[59]
Azuma M, Carlsson S, Rodgers J, et al. Pressure-induced intermetallic valence transition in BiNiO3. Journal of the American Chemical Society,2007, 129 (46): 14433–14436. DOI: 10.1021/ja074880u
[60]
Leonov I, Belozerov A S, Skornyakov S L. Unusual Mott transition associated with charge-order melting in BiNiO3 under pressure. Physical Review B,2019, 100 (16): 161112(R). DOI: 10.1103/PhysRevB.100.161112
[61]
Alonso J A, Garcia-Munoz J L, Fernandez-Diaz M T, et al. Charge disproportionation in RNiO3 perovskites: Simultaneous metal-insulator and structural transition in YNiO3. Physical Review Letters,1999, 82 (19): 3871–3874. DOI: 10.1103/PhysRevLett.82.3871
[62]
Hong S S, Gu M, Verma M, et al. Extreme tensile strain states in La0.7Ca0.3MnO3 membranes. Science,2020, 368 (6486): 71–76. DOI: 10.1126/science.aax9753
[63]
Alexe M, Ziese M, Hesse D, et al. Ferroelectric switching in multiferroic magnetite Fe3O4 thin films. Advanced Materials,2009, 21 (44): 4452–4455. DOI: 10.1002/adma.200901381
[64]
Ikeda N, Ohsumi H, Ohwada K, et al. Ferroelectricity from iron valence ordering in the charge-frustrated system LuFe2O4. Nature,2005, 436 (7054): 1136–1138. DOI: 10.1038/nature04039
[65]
Elfimov I S, Anisimov V I, Sawatzky G A. Orbital ordering, Jahn-Teller distortion, and anomalous X-ray scattering in manganates. Physical Review Letters,1999, 82 (21): 4264–4267. DOI: 10.1103/PhysRevLett.82.4264
[66]
Halcrow M A. Jahn-Teller distortions in transition metal compounds, and their importance in functional molecular and inorganic materials. Chemical Society Reviews,2013, 42 (4): 1784–1795. DOI: 10.1039/C2CS35253B
[67]
Murakami Y, Hill J, Gibbs D, et al. Resonant x-ray scattering from orbital ordering in LaMnO3. Physical Review Letters,1998, 81 (3): 582. DOI: 10.1103/PhysRevLett.81.582
[68]
Cohen R E. Origin of ferroelectricity in perovskite oxides. Nature,1992, 358 (6382): 136–138. DOI: 10.1038/358136a0
[69]
Hill N A. Why are there so few magnetic ferroelectrics? Journal of Physical Chemistry B,2000, 104 (29): 6694–6709. DOI: 10.1021/jp000114x
[70]
Huijben M, Koster G, Liao Z, et al. Interface-engineered oxygen octahedral coupling in manganite heterostructures. Applied Physics Reviews,2017, 4 (4): 041103. DOI: 10.1063/1.4985770
[71]
Kim T H, Puggioni D, Yuan Y, et al. Polar metals by geometric design. Nature,2016, 533 (7601): 68–72. DOI: 10.1038/nature17628
[72]
Liao Z, Gauquelin N, Green R J, et al. Metal-insulator-transition engineering by modulation tilt-control in perovskite nickelates for room temperature optical switching. Proceedings of the National Academy of Sciences of the United States of America,2018, 115 (38): 9515–9520. DOI: 10.1073/pnas.1807457115
[73]
Dong Y, Ma Z, Luo Z, et al. Interfacial octahedral manipulation imparts hysteresis-free metal to insulator transition in ultrathin nickelate heterostructure. Advanced Materials Interfaces,2019, 6 (17): 1900644. DOI: 10.1002/admi.201900644
[74]
Zhai X, Cheng L, Liu Y, et al. Correlating interfacial octahedral rotations with magnetism in (LaMnO3+δ)N/(SrTiO3)N superlattices. Nature Communications,2014, 5: 4283. DOI: 10.1038/ncomms5283
[75]
Guan X, Shen X, Zhang J, et al. Tuning magnetism and crystal orientations by octahedral coupling in LaCoO3/LaMnO3 thin films. Physical Review B,2019, 100 (1): 014427. DOI: 10.1103/PhysRevB.100.014427
[76]
Ziese M, Jin L, Lindfors-Vrejoiu I. Unconventional anomalous Hall effect driven by oxygen-octahedra-tailoring of the SrRuO3 structure. Journal of Physics:Materials,2019, 2 (3): 034008. DOI: 10.1088/2515-7639/ab1aef
[77]
Qin Q, Liu L, Lin W, et al. Emergence of topological Hall effect in a SrRuO3 single layer. Advanced Materials,2019, 31 (8): e1807008. DOI: 10.1002/adma.201807008
[78]
Gu Y, Wei Y-W, Xu K, et al. Interfacial oxygen-octahedral-tilting-driven electrically tunable topological Hall effect in ultrathin SrRuO3 films. Journal of Physics D:Applied Physics,2019, 52 (40): 404001. DOI: 10.1088/1361-6463/ab2fe8
[79]
Kim J R, Jang J, Go K J, et al. Stabilizing hidden room-temperature ferroelectricity via a metastable atomic distortion pattern. Nature Communications,2020, 11 (1): 4944. DOI: 10.1038/s41467-020-18741-w
[80]
Wang H, Tang F, Stengel M, et al. Convert widespread paraelectric perovskite to ferroelectrics. Physical Review Letters,2022, 128 (19): 197601. DOI: 10.1103/PhysRevLett.128.197601
[81]
Burdett J K. Similarities in the structural chemistry of d8 and d9 transition metal complexes. Explanation in terms of the angular overlap model. Inorganic Chemistry,1975, 14 (4): 931–934. DOI: 10.1021/ic50146a042
[82]
Liu H, Dong Y, Xu D, et al. Dynamic field modulation of the octahedral framework in metal oxide heterostructures. Advanced Materials,2018, 30 (52): e1804775. DOI: 10.1002/adma.201804775
[83]
Cammarata A, Rondinelli J M. Octahedral engineering of orbital polarizations in charge transfer oxides. Physical Review B,2013, 87 (15): 155135. DOI: 10.1103/PhysRevB.87.155135
[84]
Tannous C, Gieraltowski J. The Stoner-Wohlfarth model of ferromagnetism. European Journal of Physics,2008, 29 (3): 475–487. DOI: 10.1088/0143-0807/29/3/008
[85]
Zener C. Interaction between the d-shells in the transition metals. II. Ferromagnetic compounds of manganese with perovskite structure. Physical Review,1951, 82 (3): 403. DOI: 10.1103/PhysRev.82.403
[86]
Zhang B, Wu L, Feng X, et al. Tuning irreversible magnetoresistance in Pr0.67Sr0.33MnO3 film via octahedral rotation. ACS Applied Materials & Interfaces,2020, 12 (38): 43222–43230. DOI: 10.1021/acsami.0c10402
[87]
Nagaosa N, Tokura Y. Topological properties and dynamics of magnetic skyrmions. Nature Nanotechnology,2013, 8 (12): 899–911. DOI: 10.1038/nnano.2013.243
[88]
Neubauer A, Pfleiderer C, Binz B, et al. Topological Hall effect in the a phase of MnSi. Physical Review Letters,2009, 102 (18): 186602. DOI: 10.1103/PhysRevLett.102.186602
[89]
Ohnishi T, Takada K. Epitaxial thin-film growth of SrRuO3, Sr3Ru2O7, and Sr2RuO4 from a SrRuO3 target by pulsed laser deposition. Applied Physics Express,2011, 4 (2): 025501. DOI: 10.1143/APEX.4.025501
[90]
Lin S, Zhang Q, Sang X, et al. Dimensional control of octahedral tilt in SrRuO3 via infinite-layered oxides. Nano Letters,2021, 21 (7): 3146–3154. DOI: 10.1021/acs.nanolett.1c00352
[91]
Pramanick A, Paterson A, Denis L, et al. Oxygen octahedral tilt ordering in (Na1/2Bi1/2)TiO3 ferroelectric thin films. Applied Physics Letters,2020, 116 (2): 022902. DOI: 10.1063/1.5127212
[92]
Benedek N A, Fennie C J. Why are there so few perovskite ferroelectrics? Journal of Physical Chemistry C,2013, 117 (26): 13339–13349. DOI: /10.1021/jp402046t
[93]
Geng W R, Guo X W, Zhu Y L, et al. Oxygen octahedral coupling mediated ferroelectric-antiferroelectric phase transition based on domain wall engineering. Acta Materialia,2020, 198: 145–152. DOI: 10.1016/j.actamat.2020.08.007
[94]
Liao Z, Gauquelin N, Green R J, et al. Thickness dependent properties in oxide heterostructures driven by structurally induced metal-oxygen hybridization variations. Advanced Functional Materials,2017, 27 (17): 1606717. DOI: 10.1002/adfm.201606717
[95]
Yi D, Flint C L, Balakrishnan P P, et al. Tuning perpendicular magnetic anisotropy by oxygen octahedral rotations in (La1− xSrxMnO3)/(SrIrO3) superlattices. Physical Review Letters,2017, 119 (7): 077201. DOI: 10.1103/PhysRevLett.119.077201
[96]
Zhang J, Zhong Z, Guan X, et al. Symmetry mismatch-driven perpendicular magnetic anisotropy for perovskite/brownmillerite heterostructures. Nature Communications,2018, 9: 1923. DOI: 10.1038/s41467-018-04304-7
[97]
Meng M, Wang Z, Fathima A, et al. Interface-induced magnetic polar metal phase in complex oxides. Nature Communications,2019, 10: 5248. DOI: 10.1038/s41467-019-13270-7
Figure
1.

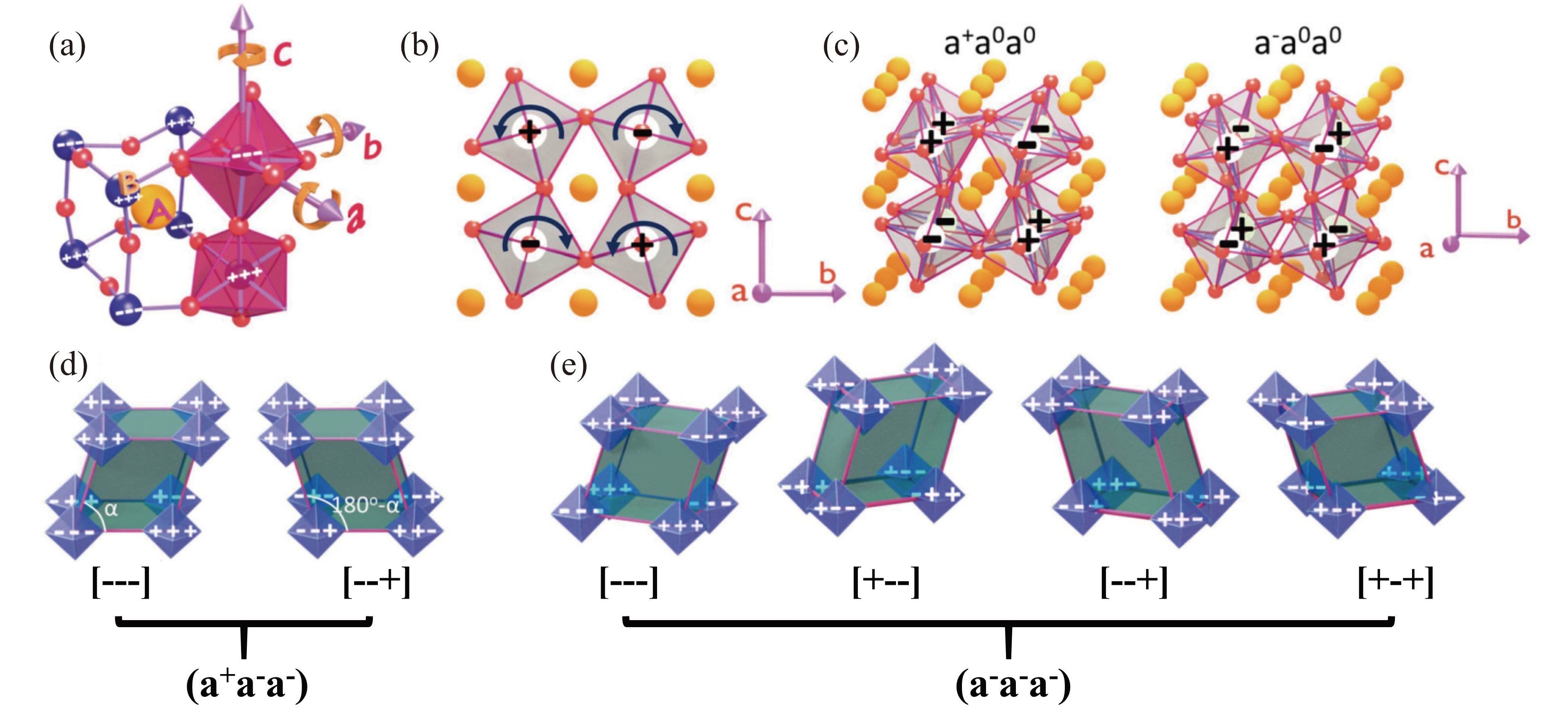

Schematic diagram of octahedral network in perovskite. (a) The definition of the rotation sign of an individual octahedron in an ABO3 perovskite unit cell with clockwise (+) and anticlockwise (–), the view direction is along the pseudocubic axis a, b, or c. (b) Rotation sign and pattern of octahedra in a shared rotation axis normal the plane. (c), (d), and (e) indicate a series of possible octahedral rotation structure network for simple (a+a0a0)/ (a−a0a0) modes and complex (a+a–a–)/ (a–a–a–) modes. Figure taken from Ref. [31].
Figure
2.

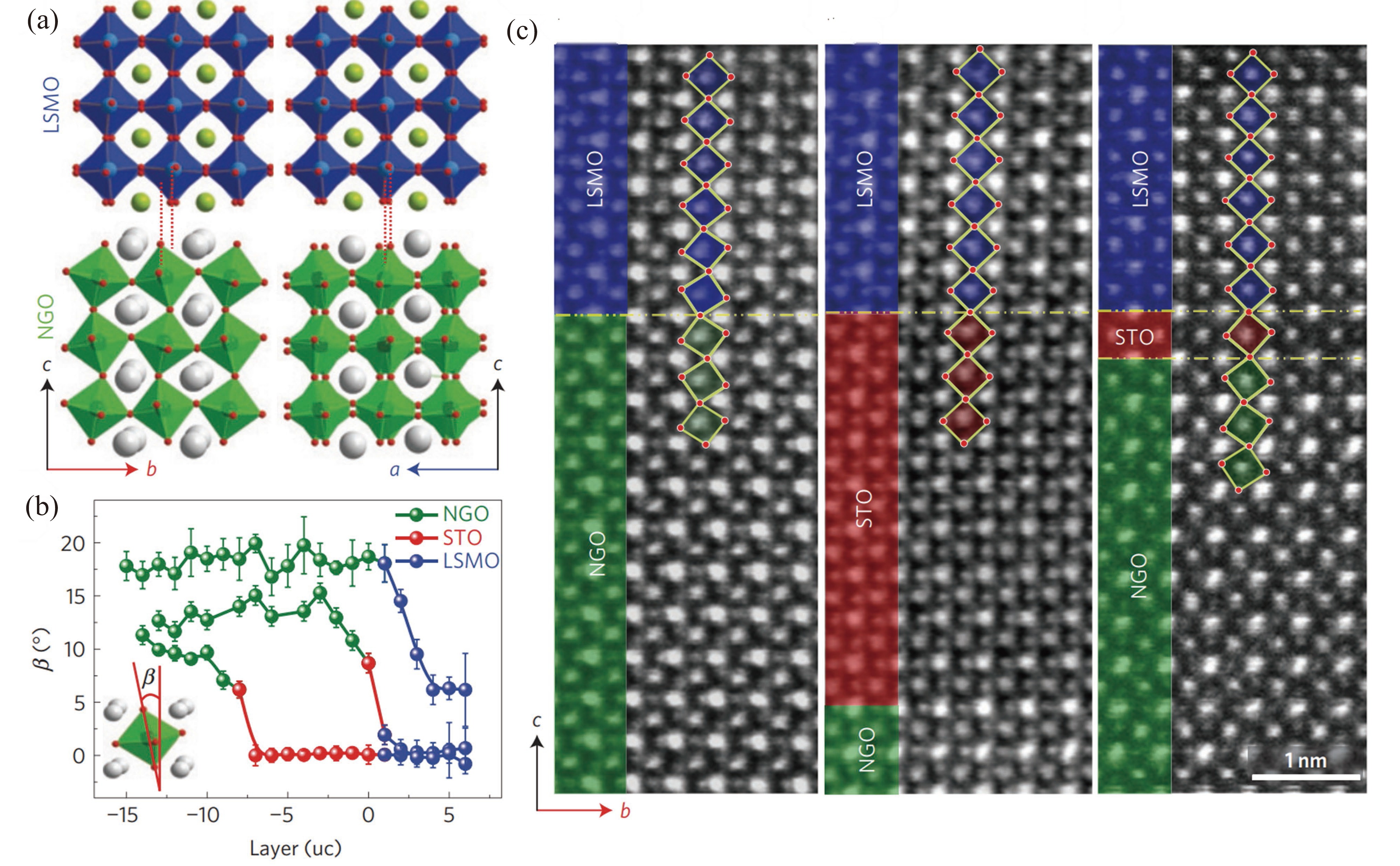

Oxygen octahedral coupling at the heterointerface between perovskite oxides. (a) Schematic diagram of octahedral rotation in LSMO and NGO interface. (b) Layer-position-dependent mean octahedral tilt angle (β) in LSMO/NGO heterostructures with and without a STO buffer layer. The data for the non-buffered sample are shifted upwards by 6° for clarity. (c) It shows ABF-STEM images of LSMO/NGO, LSMO/STO9/NGO and LSMO/STO1/NGO heterostructures. Figure taken from Ref. [33].
Figure
3.

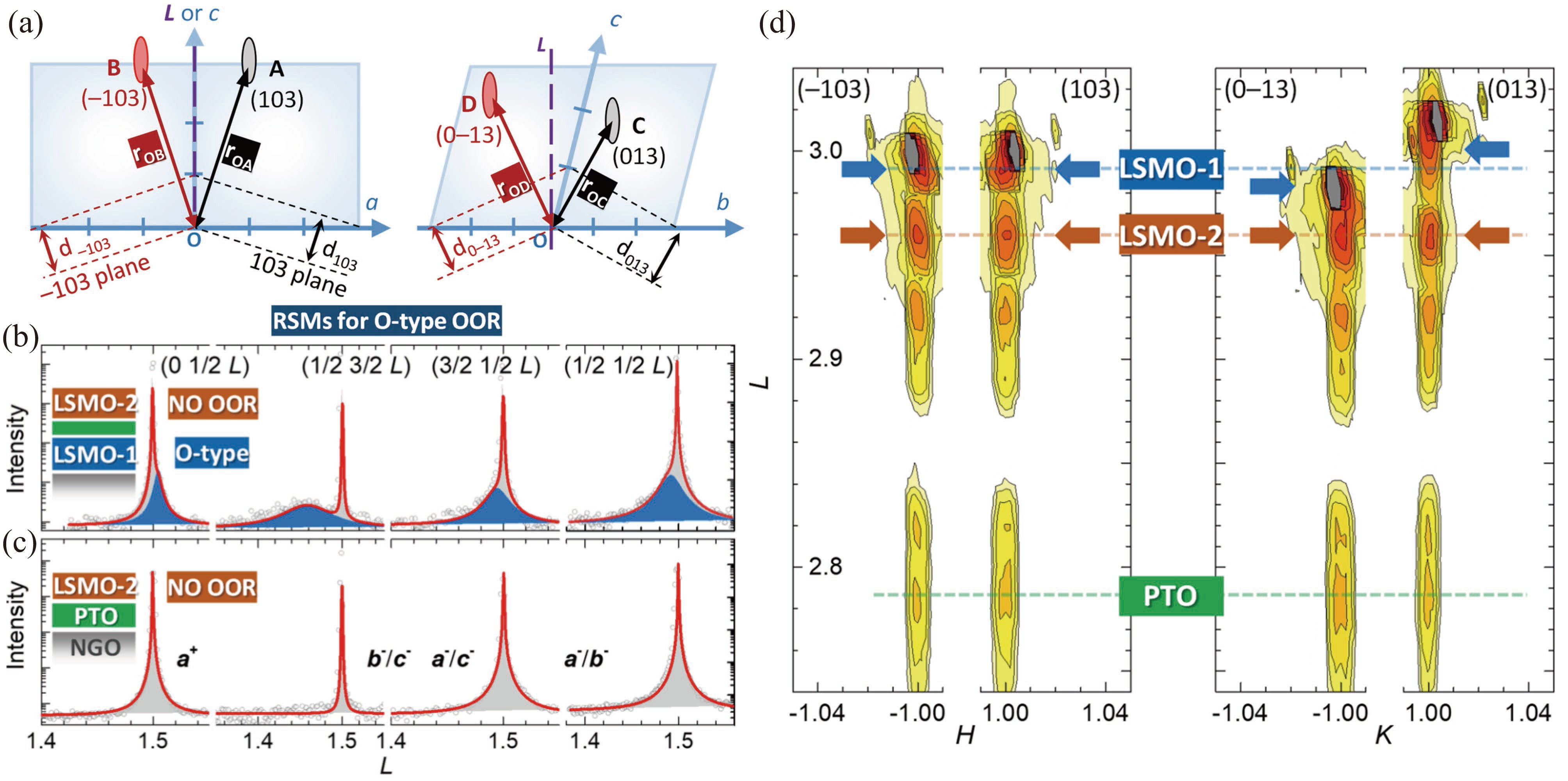

RSM characterization of oxygen octahedral rotation. (a) The sketches of the RSM with symmetric and asymmetric reflections, where rOA, rOB, rOC and rOD represent reciprocal vectors. (b) and (c) display different half-order X-ray diffraction spectrum corresponding to the heterostructures, and the blue part in (b) is obtained by peak fitting. (d) The RSMs of LSMO/PTO/LSMO/NGO along different diffraction faces. Figure taken from Ref. [42].
Figure
4.

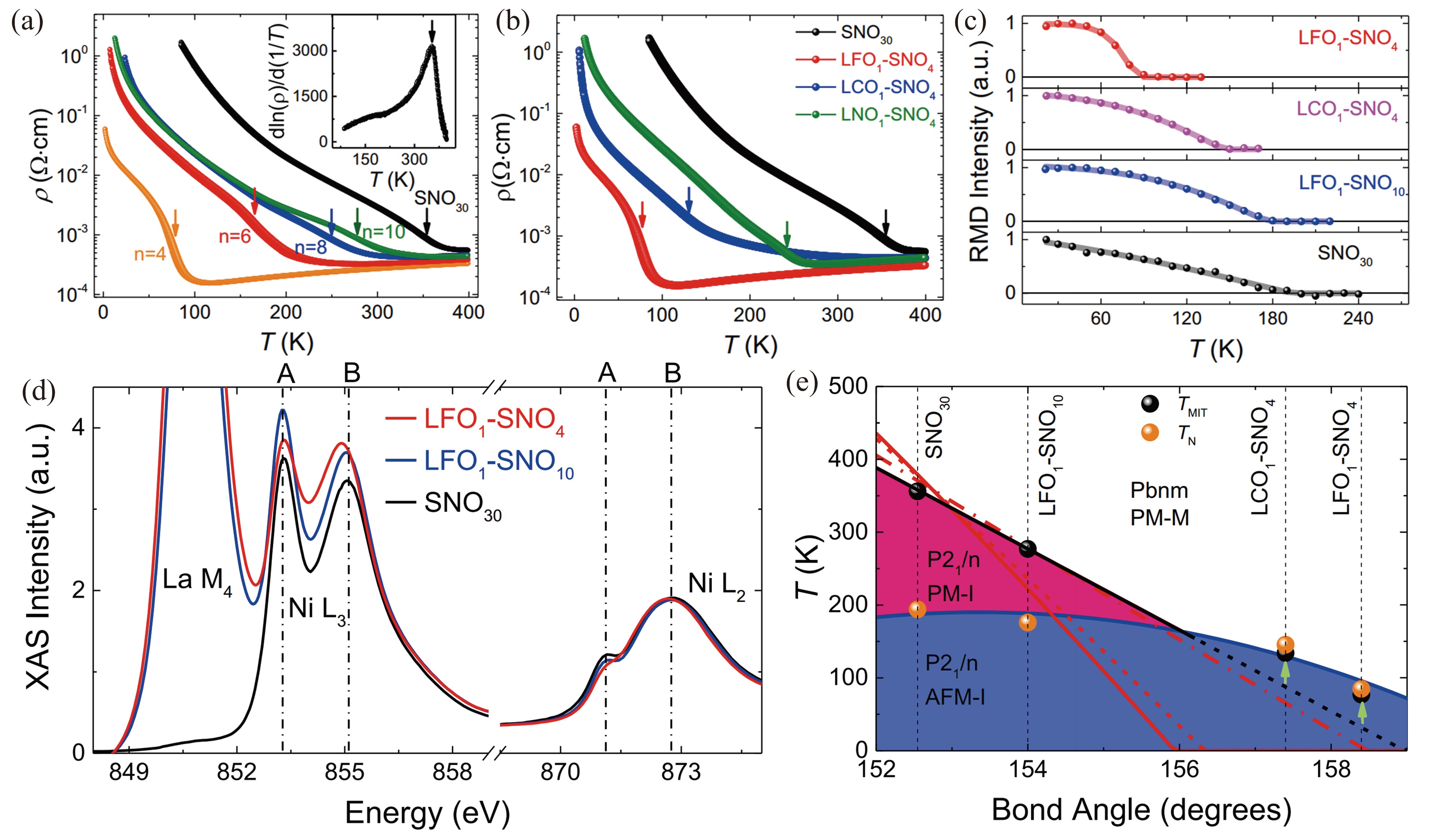

MIT in nickelate superlattices triggered by oxygen octahedral coupling. (a) ρ-T curves of LFO1-SNOn(n = 4–10) superlattices and 30 u.c. SNO film, and the inset shows the first derivative dlnp/(d(1/T)) of the SNO30 film. (b) ρ-T curves of SNO4 superlattices constructing with LFO, LCO and LNO. (c) Temperature dependent intensity of (1/4, 1/4, 1/4) magnetic Bragg reflection peak. (d) X-ray absorption spectra (XAS) of Ni L2,3 edge of nickelate superlattices with different thicknesses at 22 K. (e) Temperature phase diagram of nickelate superlattices as a function of the mean Ni—O—Ni bond angle. Figure taken from Ref. [72].
Figure
5.

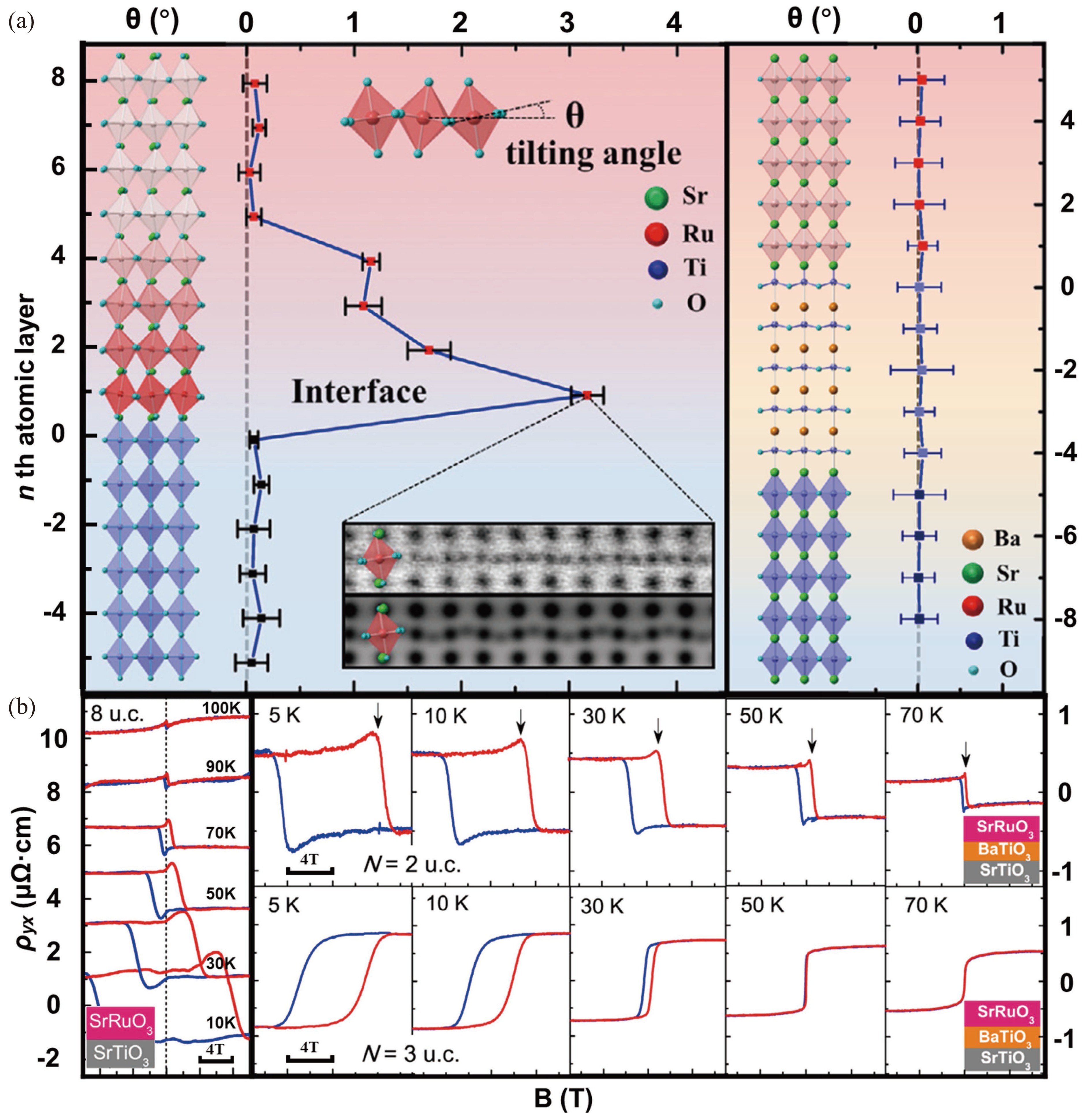

Octahedral rotation tailoring topological Hall effect. (a) The left figure shows the sketch of the octahedra configuration at the SRO/STO hetero-interface and the statistical results of rotation angle, and the inset respectively show the [RuO6] octahedral-rotation ABF image at the first layer of the interface and the simulation results. The figure on the right of the panel shows the statistics result of the rotation angle of the octahedron after inserting the 4 u.c. BTO. (b) The left picture shows the anomalous Hall resistance (AHR) of SRO (8 u.c.)/STO heterostructure at different temperatures, and the right one shows the AHR curve of SRO8/BTON (N = 2, 3)/STO at varying temperatures. Figure taken from Ref. [78].
Figure
6.

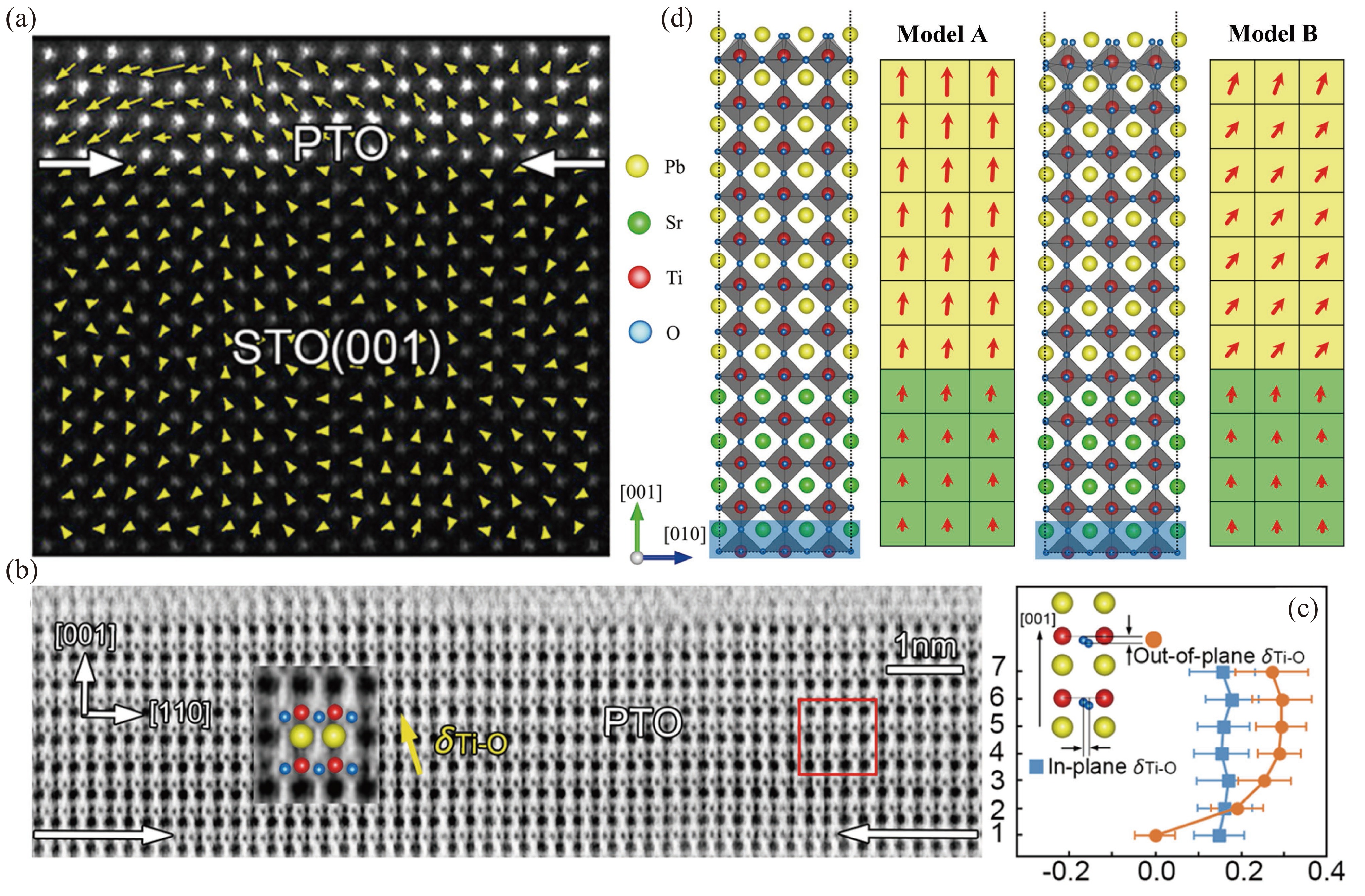

Rotation of electric polarization induced by oxygen octahedral rotation. (a) HAADF-STEM image of the 1.6 nm thick PTO film and the electric polarization distribution. (b) are the ABF-STEM results. (c) Magnitude (δTi—O) of Ti4+ deviated from the oxygen octahedra center in- and out-of- plane of the 3.2 nm PTO film, respectively. (d) First-principles calculation results, where Model A and Model B give the relaxed atomic configuration with and without AFD, respectively. And the results of the electrical polarization simulation are shown on the right. Figure taken from Ref. [39].
Figure
7.

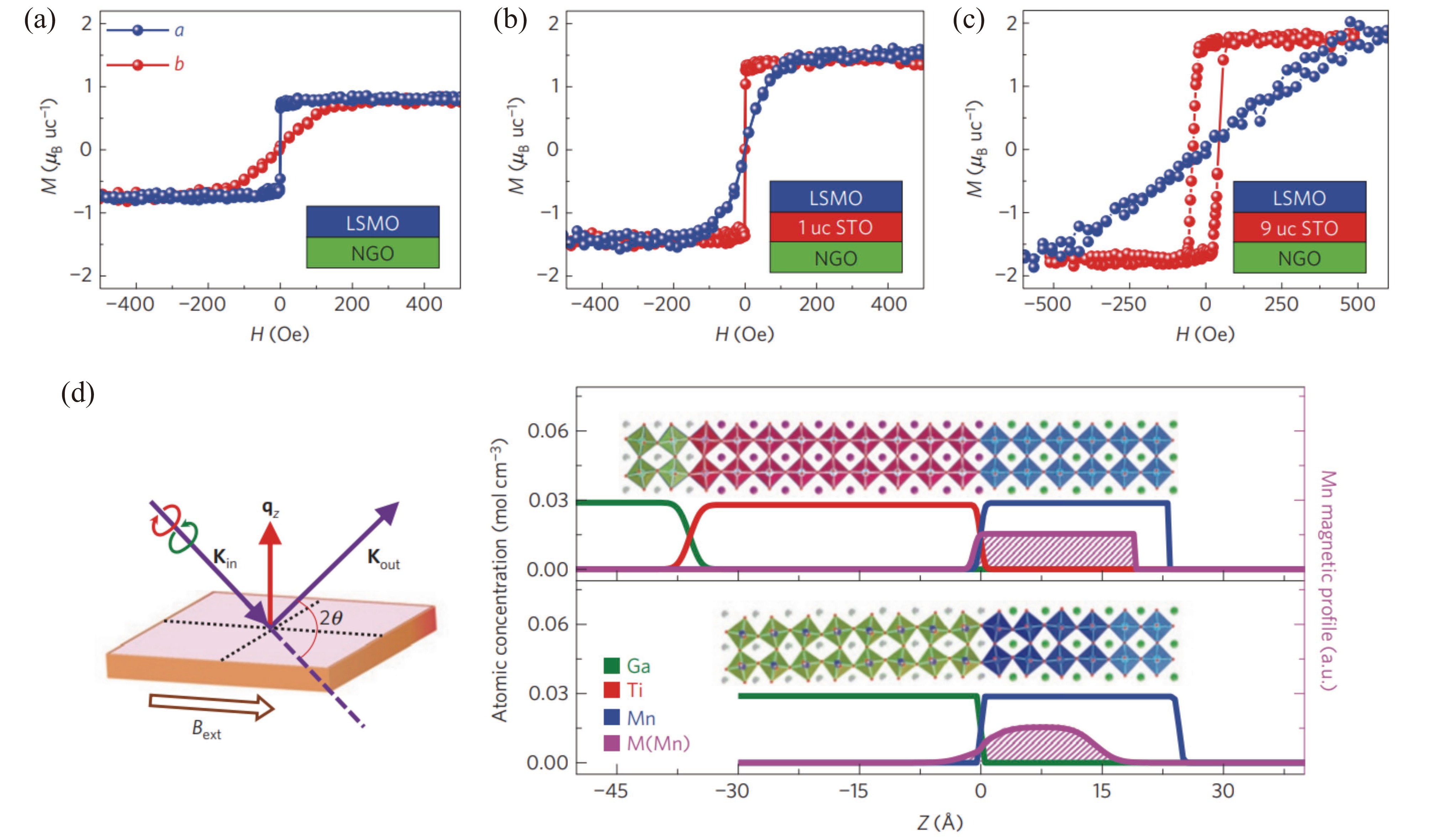

Magnetic anisotropy in the magnetic heterojunctions. (a)–(c) show the M-H curves of the LSMO film along the a-axis and b-axis of the NGO substrate, where (a), (b), and (c) show the results of inserting 0 u.c., 1 u.c., and 9 u.c. STO buffer layers, respectively. (d) RXR measurements of 6 u.c. LSMO films with (top panel) and without (bottom panel) a 9 u.c. STO buffer layer showing depth profiles of the Ga, Ti, and Mn atomic concentration (green, red, and blue lines, respectively) and Mn magnetization (M, purple line with shaded area) at 20 K. The schematic on the left shows the experimental set-up used to perform RXR measurements, where a 0.6 T magnetic field was applied in-plane along the magnetic easy axis during the measurement. Figure taken from Ref. [33].
References
[1]
Hassenzahl W V, Hazelton D W, Johnson B K, et al. Electric power applications of superconductivity. Proceedings of the IEEE,2004, 92 (10): 1655–1674. DOI: 10.1109/JPROC.2004.833674
[2]
Daughton J, Chen Y. GMR materials for low field applications. IEEE Transactions on Magnetics,1993, 29 (6): 2705–2710. DOI: 10.1109/20.280936
[3]
Wang W, Tadé M O, Shao Z. Research progress of perovskite materials in photocatalysis- and photovoltaics-related energy conversion and environmental treatment. Chemical Society Reviews,2015, 44 (15): 5371–5408. DOI: 10.1039/C5CS00113G
[4]
Imada M, Fujimori A, Tokura Y. Metal-insulator transitions. Reviews of Modern Physics,1998, 70 (4): 1039. DOI: 10.1103/RevModPhys.70.1039
[5]
Schober A, Fowlie J, Guennou M, et al. Vibrational properties of LaNiO3 films in the ultrathin regime. APL Materials,2020, 8 (6): 061102. DOI: 10.1063/5.0010233
[6]
Raj A, Kumar M, Mishra D, et al. Raman and photoluminescence spectral studies in epitaxial Bi2NiMnO6 double perovskite thin-film samples. Optical Materials,2020, 101: 109773. DOI: 10.1016/j.optmat.2020.109773
[7]
Glazer A. Simple ways of determining perovskite structures. Acta Crystallographica, Section A: Crystal Physics, Diffraction, Theoretical and General Crystallography,1975, 31 (6): 756–762. DOI: 10.1107/S0567739475001635
[8]
Ohtomo A, Hwang H. A high-mobility electron gas at the LaAlO3/SrTiO3 heterointerface. Nature,2004, 427 (6973): 423–426. DOI: 10.1038/nature02308
[9]
Reyren N, Thiel S, Caviglia A, et al. Superconducting interfaces between insulating oxides. Science,2007, 317 (5842): 1196–1199. DOI: 10.1126/science.1146006
[10]
Brinkman A, Huijben M, Van Zalk M, et al. Magnetic effects at the interface between non-magnetic oxides. Nature Materials,2007, 6 (7): 493–496. DOI: 10.1038/nmat1931
[11]
Takahashi K, Kawasaki M, Tokura Y. Interface ferromagnetism in oxide superlattices of CaMnO3/CaRuO3. Applied Physics Letters,2001, 79 (9): 1324–1326. DOI: 10.1063/1.1398331
[12]
He J, Borisevich A, Kalinin S V, et al. Control of octahedral tilts and magnetic properties of perovskite oxide heterostructures by substrate symmetry. Physical Review Letters,2010, 105 (22): 227203. DOI: 10.1103/PhysRevLett.105.227203
[13]
Lee S S, Kim Y M, Lee H J, et al. Correlation between geometrically induced oxygen octahedral tilts and multiferroic behaviors in BiFeO3 films. Advanced Functional Materials,2018, 28 (19): 1800839. DOI: 10.1002/adfm.201800839
[14]
Thomas S, Kuiper B, Hu J, et al. Localized control of Curie temperature in perovskite oxide film by capping-layer-induced octahedral distortion. Physical Review Letters,2017, 119 (17): 177203. DOI: 10.1103/PhysRevLett.119.177203
[15]
Lu W, Yang P, Song W D, et al. Control of oxygen octahedral rotations and physical properties in SrRuO3 films. Physical Review B,2013, 88 (21): 214115. DOI: 10.1103/PhysRevB.88.214115
[16]
Kan D, Aso R, Sato R, et al. Tuning magnetic anisotropy by interfacially engineering the oxygen coordination environment in a transition metal oxide. Nature Materials,2016, 15 (4): 432–437. DOI: 10.1038/nmat4580
[17]
Gao R, Dong Y Q, Xu H, et al. Interfacial octahedral rotation mismatch control of the symmetry and properties of SrRuO3. ACS Applied Materials & Interfaces,2016, 8 (23): 14871–14878. DOI: doi:10.1021/acsami.6b02864
[18]
Jaramillo R, Ha S D, Silevitch D M, et al. Origins of bad-metal conductivity and the insulator-metal transition in the rare-earth nickelates. Nature Physics,2014, 10 (4): 304–307. DOI: 10.1038/nphys2907
[19]
Rondinelli J M, Fennie C J. Octahedral rotation-induced ferroelectricity in cation ordered perovskites. Advanced Materials,2012, 24 (15): 1961–1968. DOI: 10.1002/adma.201104674
[20]
Benedek N A, Mulder A T, Fennie C J. Polar octahedral rotations: A path to new multifunctional materials. Journal of Solid State Chemistry,2012, 195: 11–20. DOI: 10.1016/j.jssc.2012.04.012
[21]
Cui Y, Liu X, Fan W, et al. Metal–insulator transition in RNiO3 (R = Pr, Nd, Sm, Gd, Tb, Dy, Ho, Er) induced by Li doping: A first-principles study. Journal of Applied Physics,2021, 129 (23): 235107. DOI: 10.1063/5.0050263
[22]
Mercy A, Bieder J, Íñiguez J, et al. Structurally triggered metal-insulator transition in rare-earth nickelates. Nature Communications,2017, 8 (1): 1677. DOI: 10.1038/s41467-017-01811-x
[23]
Subedi A, Peil O E, Georges A. Low-energy description of the metal-insulator transition in the rare-earth nickelates. Physical Review B,2015, 91 (7): 075128. DOI: 10.1103/PhysRevB.91.075128
[24]
Goldschmidt V M. Die gesetze der krystallochemie. Naturwissenschaften,1926, 14 (21): 477–485. DOI: 10.1007/BF01507527
[25]
Filip M R, Giustino F. The geometric blueprint of perovskites. Proceedings of the National Academy of Sciences of the United States of America,2018, 115 (21): 5397–5402. DOI: 10.1073/pnas.1719179115
[26]
Bartel C J, Sutton C, Goldsmith B R, et al. New tolerance factor to predict the stability of perovskite oxides and halides. Science Advances,2019, 5 (2): eaav0693. DOI: 10.1126/sciadv.aav0693
[27]
Woodward D I, Reaney I M. Electron diffraction of tilted perovskites. Acta Crystallographica Section B:Structural Science,2005, 61: 387–399. DOI: 10.1107/S0108768105015521
[28]
Jia C L, Mi S B, Faley M, et al. Oxygen octahedron reconstruction in the SrTiO3/LaAlO3 heterointerfaces investigated using aberration-corrected ultrahigh-resolution transmission electron microscopy. Physical Review B,2009, 79 (8): 081405. DOI: 10.1103/PhysRevB.79.081405
[29]
May S J, Kim J W, Rondinelli J M, et al. Quantifying octahedral rotations in strained perovskite oxide films. Physical Review B,2010, 82 (1): 014110. DOI: 10.1103/PhysRevB.82.014110
[30]
Glazer A. The classification of tilted octahedra in perovskites. Acta Crystallographica, Section B: Structural Crystallography and Crystal Chemistry,1972, 28 (11): 3384–3392. DOI: 10.1107/S0567740872007976
[31]
Liao Z, Green R J, Gauquelin N, et al. Long–range domain structure and symmetry engineering by interfacial oxygen octahedral coupling at heterostructure interface. Advanced Functional Materials,2016, 26 (36): 6627–6634. DOI: 10.1002/adfm.201602155
[32]
Aso R, Kan D, Shimakawa Y, et al. Atomic level observation of octahedral distortions at the perovskite oxide heterointerface. Scientific Reports,2013, 3: 2214. DOI: 10.1038/srep02214
[33]
Liao Z, Huijben M, Zhong Z, et al. Controlled lateral anisotropy in correlated manganite heterostructures by interface-engineered oxygen octahedral coupling. Nature Materials,2016, 15 (4): 425–431. DOI: 10.1038/nmat4579
[34]
Samanta K, Ležaić M, Blügel S, et al. Tailoring the anomalous Hall effect of SrRuO3 thin films by strain: A first principles study. Journal of Applied Physics,2021, 129 (9): 093904. DOI: 10.1063/5.0043742
[35]
Wang L, Pan W, Han D, et al. First-principles calculations of oxygen octahedral distortions in LaAlO3/SrTiO3 (001) superlattices. Physical Chemistry Chemical Physics,2020, 22 (10): 5826–5831. DOI: 10.1039/C9CP06236J
[36]
Gu T, Scarbrough T, Yang Y, et al. Cooperative couplings between octahedral rotations and ferroelectricity in perovskites and related materials. Physical Review Letters,2018, 120 (19): 197602. DOI: 10.1103/PhysRevLett.120.197602
[37]
Rondinelli J M, Spaldin N A. Structure and properties of functional oxide thin films: Insights from electronic–structure calculations. Advanced Materials,2011, 23 (30): 3363–3381. DOI: 10.1002/adma.201101152
[38]
Koohfar S, Disa A S, Marshall M S J, et al. Structural distortions at polar manganite interfaces. Physical Review B,2017, 96 (2): 024108. DOI: 10.1103/PhysRevB.96.024108
[39]
Zhang S, Guo X, Tang Y, et al. Polarization rotation in ultrathin ferroelectrics tailored by interfacial oxygen octahedral coupling. ACS Nano,2018, 12 (4): 3681–3688. DOI: 10.1021/acsnano.8b00862
[40]
Chen B, Gauquelin N, Green R J, et al. Spatially controlled octahedral rotations and metal-insulator transitions in nickelate superlattices. Nano Letters,2021, 21 (3): 1295–1302. DOI: 10.1021/acs.nanolett.0c03850
[41]
Kan D, Anada M, Wakabayashi Y, et al. Oxygen octahedral distortions in compressively strained SrRuO3 epitaxial thin films. Journal of Applied Physics,2018, 123 (23): 235303. DOI: 10.1063/1.5036748
[42]
Chen P F, Lan D, Liu C, et al. Correlated cation lattice symmetry and oxygen octahedral rotation in perovskite oxide heterostructures. Journal of Applied Physics,2021, 129 (2): 025303. DOI: 10.1063/5.0035501
[43]
Muller D A. Structure and bonding at the atomic scale by scanning transmission electron microscopy. Nature Materials,2009, 8 (4): 263–270. DOI: 10.1038/nmat2380
[44]
Ovsyannikov S V, Abakumov A M, Tsirlin A A, et al. Perovskite-like Mn2O3: A path to new manganites. Angewandte Chemie International Edition,2013, 52 (5): 1494–1498. DOI: 10.1002/anie.201208553
[45]
Bindu R, Pandey S K, Kumar A, et al. Local distortion of MnO6 octahedron in La1− xSrxMnO3+ δ (x = 0.1–0.9): An EXAFS study. Journal of Physics: Condensed Matter,2005, 17 (41): 6393–6404. DOI: 10.1088/0953-8984/17/41/010
[46]
Bashir J, Shaheen R, Khan M N. Structural characterization of SrLaMnRuO6 by synchrotron X-ray powder diffraction and X-ray absorption spectroscopy. Solid State Sciences,2008, 10 (5): 638–644. DOI: 10.1016/j.solidstatesciences.2007.10.011
[47]
Shaheen R, Bashir J, Khan M N. EXAFS studies of ruthenium based double perovskite ALaMnRuO6 (A = Ca, Sr, Ba). Materials Sciences and Applications,2012, 03 (01): 24–29. DOI: 10.4236/msa.2012.31004
[48]
Mahana S, Manju U, Nandi P, et al. Role of local structural distortion in driving ferroelectricity in GdCrO3. Physical Review B,2018, 97 (22): 224107. DOI: 10.1103/PhysRevB.97.224107
[49]
Jiang Y, Yuan L, Wang X, et al. Jahn-Teller disproportionation induced exfoliation of unit-cell scale ε-MnO2. Angewandte Chemie International Edition,2020, 59 (50): 22659–22666. DOI: 10.1002/anie.202010246
[50]
Yuan Y K, Lu Y F, Stone G, et al. Three-dimensional atomic scale electron density reconstruction of octahedral tilt epitaxy in functional perovskites. Nature Communications,2018, 9: 5220. DOI: 10.1038/s41467-018-07665-1
[51]
Herger R, Willmott P R, Schleputz C M, et al. Structure determination of monolayer-by-monolayer grown La1- xSrxMnO3 thin films and the onset of magnetoresistance. Physical Review B,2008, 77 (8): 085401. DOI: 10.1103/PhysRevB.77.085401
[52]
Bielecki J, Svedlindh P, Tibebu D T, et al. Structural and magnetic properties of isovalently substituted multiferroic BiFeO3: Insights from Raman spectroscopy. Physical Review B,2012, 86 (18): 184422. DOI: 10.1103/PhysRevB.86.184422
[53]
Xu Q, Zheng X, Wen Z, et al. Enhanced room temperature ferromagnetism in porous BiFeO3 prepared using cotton templates. Solid State Communications,2011, 151 (8): 624–627. DOI: 10.1016/j.ssc.2011.01.029
[54]
Iliev M, Abrashev M, Lee H-G, et al. Raman spectroscopy of orthorhombic perovskitelike YMnO3 and LaMnO3. Physical Review B,1998, 57 (5): 2872. DOI: 10.1103/PhysRevB.57.2872
[55]
Woodward P M, Cox D E, Moshopoulou E, et al. Structural studies of charge disproportionation and magnetic order in CaFeO3. Physical Review B,2000, 62 (2): 844–855. DOI: 10.1103/PhysRevB.62.844
[56]
Medarde M, Fernandez-Diaz M T, Lacorre P. Long-range charge order in the low-temperature insulating phase of PrNiO3. Physical Review B,2008, 78 (21): 212101. DOI: 10.1103/PhysRevB.78.212101
[57]
Blasco J, Rodriguez-Velamazan J A, Garcia J, et al. Structural properties of charge disproportionation and magnetic order in Sr2/3Ln1/3FeO3 (Ln=La, Pr, and Nd). Physical Review B,2018, 98 (10): 104422. DOI: 10.1103/PhysRevB.98.104422
[58]
Cheng J, Kweon K E, Larregola S A, et al. Charge disproportionation and the pressure-induced insulator-metal transition in cubic perovskite PbCrO3. Proceedings of the National Academy of Sciences of the United States of America,2015, 112 (6): 1670–1674. DOI: 10.1073/pnas.1424431112
[59]
Azuma M, Carlsson S, Rodgers J, et al. Pressure-induced intermetallic valence transition in BiNiO3. Journal of the American Chemical Society,2007, 129 (46): 14433–14436. DOI: 10.1021/ja074880u
[60]
Leonov I, Belozerov A S, Skornyakov S L. Unusual Mott transition associated with charge-order melting in BiNiO3 under pressure. Physical Review B,2019, 100 (16): 161112(R). DOI: 10.1103/PhysRevB.100.161112
[61]
Alonso J A, Garcia-Munoz J L, Fernandez-Diaz M T, et al. Charge disproportionation in RNiO3 perovskites: Simultaneous metal-insulator and structural transition in YNiO3. Physical Review Letters,1999, 82 (19): 3871–3874. DOI: 10.1103/PhysRevLett.82.3871
[62]
Hong S S, Gu M, Verma M, et al. Extreme tensile strain states in La0.7Ca0.3MnO3 membranes. Science,2020, 368 (6486): 71–76. DOI: 10.1126/science.aax9753
[63]
Alexe M, Ziese M, Hesse D, et al. Ferroelectric switching in multiferroic magnetite Fe3O4 thin films. Advanced Materials,2009, 21 (44): 4452–4455. DOI: 10.1002/adma.200901381
[64]
Ikeda N, Ohsumi H, Ohwada K, et al. Ferroelectricity from iron valence ordering in the charge-frustrated system LuFe2O4. Nature,2005, 436 (7054): 1136–1138. DOI: 10.1038/nature04039
[65]
Elfimov I S, Anisimov V I, Sawatzky G A. Orbital ordering, Jahn-Teller distortion, and anomalous X-ray scattering in manganates. Physical Review Letters,1999, 82 (21): 4264–4267. DOI: 10.1103/PhysRevLett.82.4264
[66]
Halcrow M A. Jahn-Teller distortions in transition metal compounds, and their importance in functional molecular and inorganic materials. Chemical Society Reviews,2013, 42 (4): 1784–1795. DOI: 10.1039/C2CS35253B
[67]
Murakami Y, Hill J, Gibbs D, et al. Resonant x-ray scattering from orbital ordering in LaMnO3. Physical Review Letters,1998, 81 (3): 582. DOI: 10.1103/PhysRevLett.81.582
[68]
Cohen R E. Origin of ferroelectricity in perovskite oxides. Nature,1992, 358 (6382): 136–138. DOI: 10.1038/358136a0
[69]
Hill N A. Why are there so few magnetic ferroelectrics? Journal of Physical Chemistry B,2000, 104 (29): 6694–6709. DOI: 10.1021/jp000114x
[70]
Huijben M, Koster G, Liao Z, et al. Interface-engineered oxygen octahedral coupling in manganite heterostructures. Applied Physics Reviews,2017, 4 (4): 041103. DOI: 10.1063/1.4985770
[71]
Kim T H, Puggioni D, Yuan Y, et al. Polar metals by geometric design. Nature,2016, 533 (7601): 68–72. DOI: 10.1038/nature17628
[72]
Liao Z, Gauquelin N, Green R J, et al. Metal-insulator-transition engineering by modulation tilt-control in perovskite nickelates for room temperature optical switching. Proceedings of the National Academy of Sciences of the United States of America,2018, 115 (38): 9515–9520. DOI: 10.1073/pnas.1807457115
[73]
Dong Y, Ma Z, Luo Z, et al. Interfacial octahedral manipulation imparts hysteresis-free metal to insulator transition in ultrathin nickelate heterostructure. Advanced Materials Interfaces,2019, 6 (17): 1900644. DOI: 10.1002/admi.201900644
[74]
Zhai X, Cheng L, Liu Y, et al. Correlating interfacial octahedral rotations with magnetism in (LaMnO3+δ)N/(SrTiO3)N superlattices. Nature Communications,2014, 5: 4283. DOI: 10.1038/ncomms5283
[75]
Guan X, Shen X, Zhang J, et al. Tuning magnetism and crystal orientations by octahedral coupling in LaCoO3/LaMnO3 thin films. Physical Review B,2019, 100 (1): 014427. DOI: 10.1103/PhysRevB.100.014427
[76]
Ziese M, Jin L, Lindfors-Vrejoiu I. Unconventional anomalous Hall effect driven by oxygen-octahedra-tailoring of the SrRuO3 structure. Journal of Physics:Materials,2019, 2 (3): 034008. DOI: 10.1088/2515-7639/ab1aef
[77]
Qin Q, Liu L, Lin W, et al. Emergence of topological Hall effect in a SrRuO3 single layer. Advanced Materials,2019, 31 (8): e1807008. DOI: 10.1002/adma.201807008
[78]
Gu Y, Wei Y-W, Xu K, et al. Interfacial oxygen-octahedral-tilting-driven electrically tunable topological Hall effect in ultrathin SrRuO3 films. Journal of Physics D:Applied Physics,2019, 52 (40): 404001. DOI: 10.1088/1361-6463/ab2fe8
[79]
Kim J R, Jang J, Go K J, et al. Stabilizing hidden room-temperature ferroelectricity via a metastable atomic distortion pattern. Nature Communications,2020, 11 (1): 4944. DOI: 10.1038/s41467-020-18741-w
[80]
Wang H, Tang F, Stengel M, et al. Convert widespread paraelectric perovskite to ferroelectrics. Physical Review Letters,2022, 128 (19): 197601. DOI: 10.1103/PhysRevLett.128.197601
[81]
Burdett J K. Similarities in the structural chemistry of d8 and d9 transition metal complexes. Explanation in terms of the angular overlap model. Inorganic Chemistry,1975, 14 (4): 931–934. DOI: 10.1021/ic50146a042
[82]
Liu H, Dong Y, Xu D, et al. Dynamic field modulation of the octahedral framework in metal oxide heterostructures. Advanced Materials,2018, 30 (52): e1804775. DOI: 10.1002/adma.201804775
[83]
Cammarata A, Rondinelli J M. Octahedral engineering of orbital polarizations in charge transfer oxides. Physical Review B,2013, 87 (15): 155135. DOI: 10.1103/PhysRevB.87.155135
[84]
Tannous C, Gieraltowski J. The Stoner-Wohlfarth model of ferromagnetism. European Journal of Physics,2008, 29 (3): 475–487. DOI: 10.1088/0143-0807/29/3/008
[85]
Zener C. Interaction between the d-shells in the transition metals. II. Ferromagnetic compounds of manganese with perovskite structure. Physical Review,1951, 82 (3): 403. DOI: 10.1103/PhysRev.82.403
[86]
Zhang B, Wu L, Feng X, et al. Tuning irreversible magnetoresistance in Pr0.67Sr0.33MnO3 film via octahedral rotation. ACS Applied Materials & Interfaces,2020, 12 (38): 43222–43230. DOI: 10.1021/acsami.0c10402
[87]
Nagaosa N, Tokura Y. Topological properties and dynamics of magnetic skyrmions. Nature Nanotechnology,2013, 8 (12): 899–911. DOI: 10.1038/nnano.2013.243
[88]
Neubauer A, Pfleiderer C, Binz B, et al. Topological Hall effect in the a phase of MnSi. Physical Review Letters,2009, 102 (18): 186602. DOI: 10.1103/PhysRevLett.102.186602
[89]
Ohnishi T, Takada K. Epitaxial thin-film growth of SrRuO3, Sr3Ru2O7, and Sr2RuO4 from a SrRuO3 target by pulsed laser deposition. Applied Physics Express,2011, 4 (2): 025501. DOI: 10.1143/APEX.4.025501
[90]
Lin S, Zhang Q, Sang X, et al. Dimensional control of octahedral tilt in SrRuO3 via infinite-layered oxides. Nano Letters,2021, 21 (7): 3146–3154. DOI: 10.1021/acs.nanolett.1c00352
[91]
Pramanick A, Paterson A, Denis L, et al. Oxygen octahedral tilt ordering in (Na1/2Bi1/2)TiO3 ferroelectric thin films. Applied Physics Letters,2020, 116 (2): 022902. DOI: 10.1063/1.5127212
[92]
Benedek N A, Fennie C J. Why are there so few perovskite ferroelectrics? Journal of Physical Chemistry C,2013, 117 (26): 13339–13349. DOI: /10.1021/jp402046t
[93]
Geng W R, Guo X W, Zhu Y L, et al. Oxygen octahedral coupling mediated ferroelectric-antiferroelectric phase transition based on domain wall engineering. Acta Materialia,2020, 198: 145–152. DOI: 10.1016/j.actamat.2020.08.007
[94]
Liao Z, Gauquelin N, Green R J, et al. Thickness dependent properties in oxide heterostructures driven by structurally induced metal-oxygen hybridization variations. Advanced Functional Materials,2017, 27 (17): 1606717. DOI: 10.1002/adfm.201606717
[95]
Yi D, Flint C L, Balakrishnan P P, et al. Tuning perpendicular magnetic anisotropy by oxygen octahedral rotations in (La1− xSrxMnO3)/(SrIrO3) superlattices. Physical Review Letters,2017, 119 (7): 077201. DOI: 10.1103/PhysRevLett.119.077201
[96]
Zhang J, Zhong Z, Guan X, et al. Symmetry mismatch-driven perpendicular magnetic anisotropy for perovskite/brownmillerite heterostructures. Nature Communications,2018, 9: 1923. DOI: 10.1038/s41467-018-04304-7
[97]
Meng M, Wang Z, Fathima A, et al. Interface-induced magnetic polar metal phase in complex oxides. Nature Communications,2019, 10: 5248. DOI: 10.1038/s41467-019-13270-7
Open Access
DownLoad:
